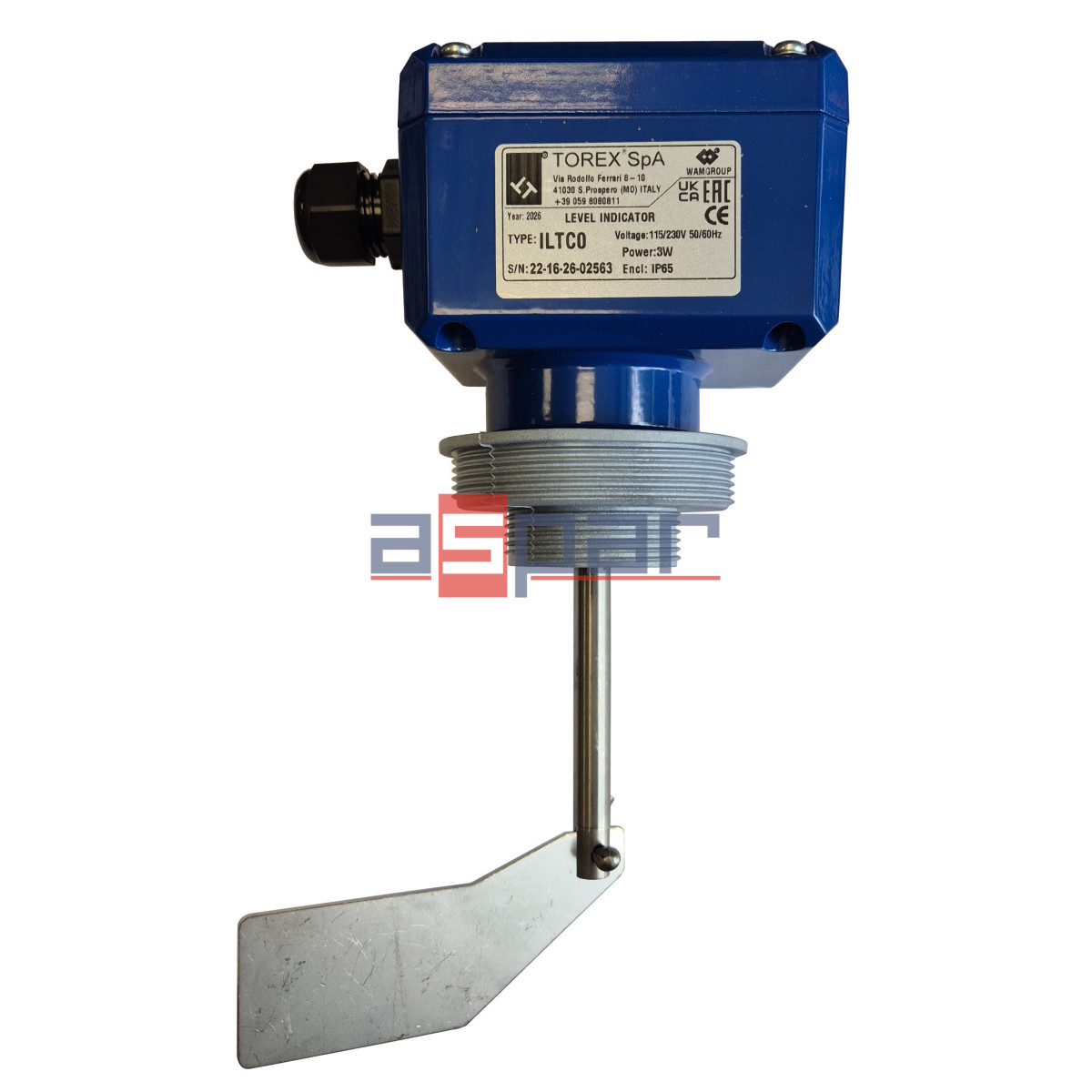

ILT C0 115/230VAC
Rotary, level paddle indicator. Power supply: 115/230VAC. Output signal: relay CO.
Description
Level indicators ILT - technical info
Level indicators ILT - user manual
ILT Bin Level Indicators have been designed for electric signalling by rotary action of minimum or maximum material level inside bins, hoppers or silos.
As long as material is present, the paddle of the ILT Bin Level Indicator does not rotate. As soon as the material level sinks below the pad-
dle radius, rotation restarts activating other system components. The top or side-mounted indicators are commonly used for materials
having a bulk density ranging from 0.5 t/m3 (0.02 lbs per cu in) to 2 t/m3 (0.08 lbs per cu in).
| description |
|
| Code | ILT C0 115/230VAC |
| Manufacturer | TOREX |
| Mains voltage | 115/230 VAC 50/60Hz |
| Installed load | 3 W |
| Connection terminal | 1 x max 1,5mm2 |
| Screwed cable gland |
PG 13,5 |
| Output signal |
CO relay 250VAC 2A 500W (cosφ=1); 300VDC 2A 60W |
| Enclosure | IP65 |
| Thread | 1+1/2" - 2+1/2" |
| Sensitivity | adjustable via reset force of spring in three positions |
| Speed of measuring vane | 1 r.p.m. |
| Bulk density |
from 0,5 to 2,0 t/m3 (from 0,02 lbs per cu in to 0,08 lbs per cu in) |
| Custom Tariff Number | 90318080 |
