MOD-1AI
- INPUT: 1 x voltage analog input, 1 x current analog input;
- OUTPUT: RS485 - Modbus Slave (ASCII, RTU);
- Support voltage analog input: 0~10VDC; -10~+10VDC, 0~1VDC; -1~+1VDC
- Support current analog input: 0~20mA, 4-20mA, -20~+20mA
- Up to 128 modules on RS485 network;
- 1 digital output PNP or NPN types, 250mA;
- 2 years guarantee;
- Made in Poland
Description
- INPUT: 1 x voltage analog input, 1 x current analog input;
- OUTPUT: RS485 - Modbus Slave (ASCII, RTU);
- Supply voltage: 10-36VDC; 20-28VAC
- Support voltage analog input: 0~10VDC; -10~+10VDC, 0~1VDC; -1~+1VDC
- Support current analog input: 0~20mA, 4-20mA, -20~+20mA
- Up to 128 modules on RS485 network
- 1 digital output PNP or NPN types, 250mA; activated when the value exceeds the setpioint or dropped below the setpoint
- Mounting on a DIN rail
- Equipped with set of LEDs used to indicate the status of inputs useful for diagnostic purposes and helping to find errors
- Comfortable connectors for cables (up to 2.5 mm2)
- 1kV galvanic isolation between RS485, power equipment, and measuring inputs and digital output
- Configuration: Modbus Configurator (free)
- Custom Tariff Number: 8543-70-90-99
- 2 years guarantee
- Made in Poland
The MOD-1A1 module has 1 current analog input (0~20mA, 4-20mA, -20~+20mA) and 1 voltage analog input (0~10VDC; -10~+10VDC, 0~1VDC; -1~+1VDC). Both intputs can be used at the same time. The modul is equipped in one configurable digital output PNP or NPN type. Digital output is activated when the value exceeds the setpioint or dropped below the setpoint.
Setting the output current or voltage value is done via RS485 (Modbus protocol), so you can easily integrate the module with popular PLCs, HMI or PC equipped with the appropriate adapter.
The module MOD-1AI communicates with all commercially available PLCs and other devices that support popular Modbus Master protocol.
This module is connected to the RS485 bus with twisted-pair wire. Communication is via MODBUS RTU or MODBUS ASCII. The use of 32-bit ARM core processor provides fast processing and quick communication. The baud rate is configurable from 2400 to 115200.

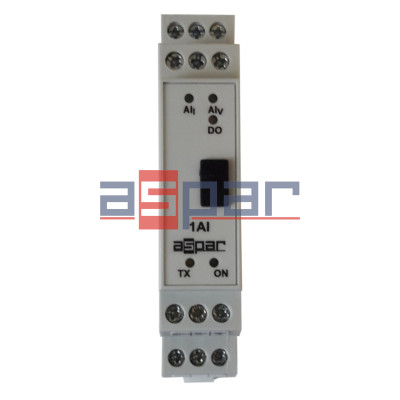

The module is designed for mounting on a DIN rail in accordance with DIN EN 5002. The module is equipped with a set of LEDs used to indicate the status of intputs digital output useful for diagnostic purposes and helping to find errors.
Module configuration is done via USB by using a dedicated computer program - Modbus Configurator (free). You can also change the parameters using the MODBUS protocol.
Available accessories:
Programming cable 1,0m: mini USB-1
Programming cable 1,8m: mini USB-2
Anweisung MOD1AI (User manual - german version)
Dokumentacja MOD1AI (User manual - Polish version)
Instrukcja obsługi konfiguratora (User manual of software for programming - Polish version)
Declaration of Conformity CE - Mini Modules
Deklaracja zgodność ze znakiem CE (Declaration of Conformity CE - Polish version)
Product Details
MOD-1AI
Specific References
