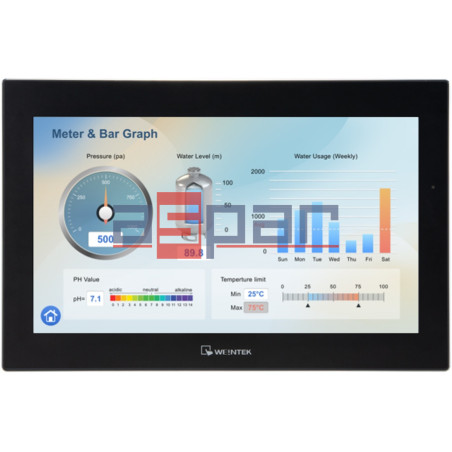

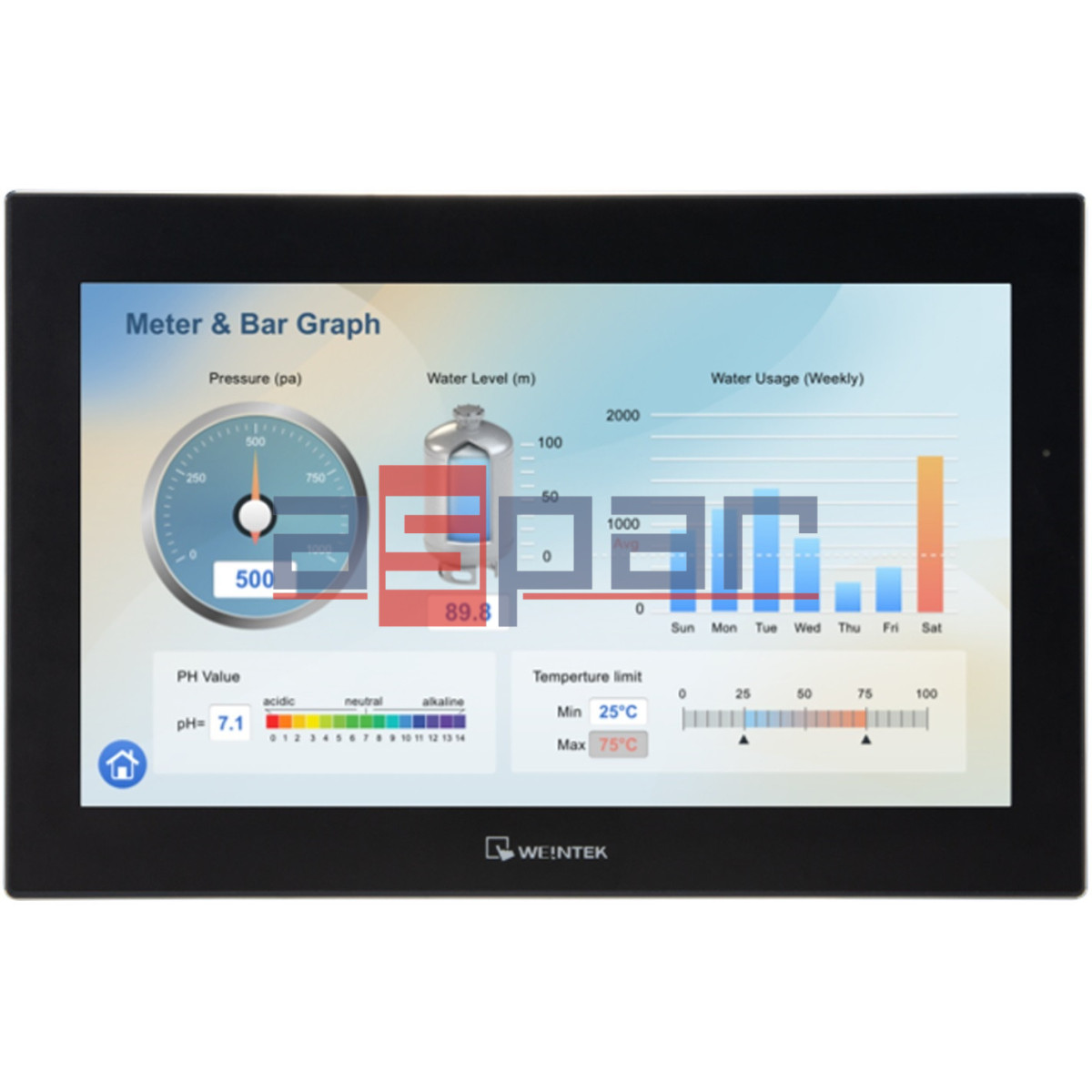

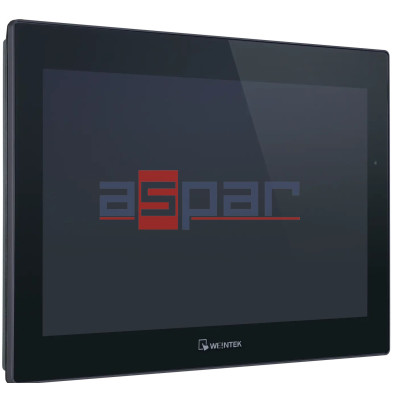

cMT2168X - HMI 15,6"
€985.00
€916.05
Save 7%
cena netto
Lowest price within 30 days before promotion:
€916.05
cMT2168X
The 15.6" cMT2168X HMI is characterized by high performance, capacious memory and advanced connectivity.
Description
The cMT2168X operator panel features high-performance hardware—including a quad-core RISC processor, 4 GB of Flash memory, 1 GB of RAM, and a 15.6" display with a resolution of 1920 x 1080 px—enabling the simultaneous display of complex process visualizations and numerous operator objects without compromising readability. Two Ethernet ports facilitate efficient communication with the host network and other automation devices.
FEATURES:
| Display | Display | 15,6" TFT |
| Resolution (px) | 1920x1080 | |
| Brightness (cd/m2) | 500 | |
| Contrast Ratio | 1500:1 | |
| Colors | 16.2M | |
| Touch Panel | Type | Resistive Type |
| Accuracy | Active Area Length(X)±2%, Width(Y)±2% | |
| Memory | Flash (GB) | 4 |
| RAM (GB) | 1 | |
| Processor | Type | Quad-core RISC |
| I/O Port | SD slot | N/A |
| USB Host | USB 2.0 x 1 | |
| USB Client | N/A | |

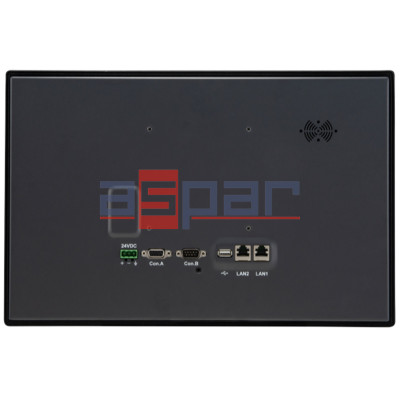

| Ethernet |
LAN 1: 10/100/1000 Base-T x 1 LAN 2: 10/100 Base-T x 1 |
|
| COM port | Com.A: COM1 RS-485 2W/4W, COM3 RS-485 2W Com.B: COM1 RS-232 4W, COM3 RS-232 2W* |
|
| CAN Bus | N/A | |
| RTC | Real Time Clock | Built-in |
| Power | Input power | 24±20% VDC |
| Power consumption | 0,9A@24VDC | |
| Power Isolation | Built-in | |
| Voltage resistance | 500 VAC (1 min.) | |
| Isolation Resistance | Exceed 50 MOhm at 500VDC | |
| Vibration Endurance | 10 to 25 Hz (X,Y,Z direction 2G 30 minutes) |
|
| Specification | Enclosure | Aluminum |
| Dimensions WxHxD | 400 x 263 x 31,3mm | |
| Panel Cutout | 384 x 247mm | |
| Weight | Approx. 2,1 kg | |
| Environment | Protection Structure | NEMA4 / IP66 Compliant Front Panel |
| Storage temperature | -20 ~ 60 ° C (-4°~ 140 ° F) | |
| Operating temperature | 0 ~ 55 ° C (32°~ 131 ° F) | |
| Relative Humidity | 10 % - 90 % (non-condensing) | |
| Certification | CE | CE marked |
| Software | Free | Easy Builder Pro V6.10.01 or later version |
| Tariff | Custom Tariff number | 85371091 |
*Only Tx & Rx (no RTS/CTS) may be used for COM1 RS-232 when COM3 RS-232 is also used.
