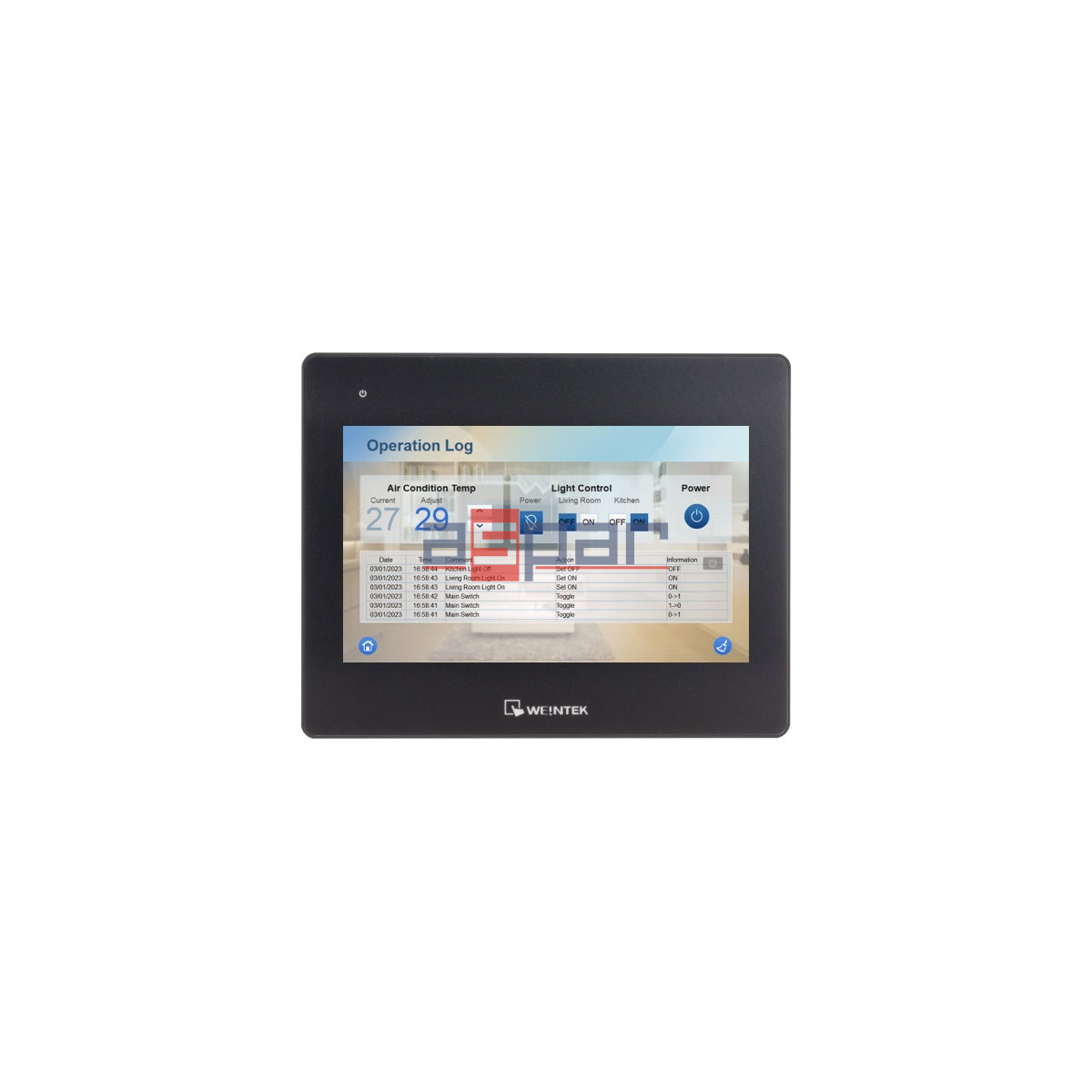

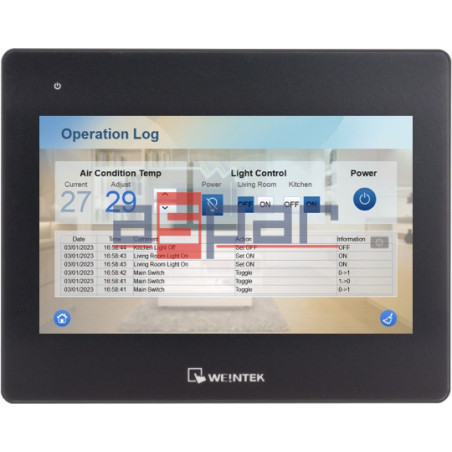

cMT2102X - HMI 10,1"
€517.00
€480.81
Save 7%
cena netto
Lowest price within 30 days before promotion:
€480.81
cMT2102X
The cMT2078 7" HMI is characterized by high performance, capacious memory and advanced connectivity. The screen with a resolution of 1024 x 600 guarantees good image readability even from wide angles.
Description
The HMI panel has a high-performance quad-core processor that ensures fast and smooth operation and can easily handle the most difficult calculations. The processor is supported by 1GB of RAM and 4GB of Flash memory.
The panel is designed to work with EasyBuilder Pro software (from version 6.10.01) and can optionally be extended with remote access functions via Weincloud EasyAccess 2.0 or the CODESYS® environment.
The Weintek cMT2102X is designed for harsh environments. The front panel meets IP66 and NEMA 4 standards, providing protection against dust and water jets. Its operating temperature range is 0 to 55°C, vibration resistance, and PCB protective coating enhance the device's reliability in industrial environments.
FEATURES:
| Display | Display | 10,1" WVA |
| Resolution (px) | 1024x600 | |
| Brightness (cd/m2) | 400 | |
| Contrast Ratio | 500:1 | |
| Backlight Type | LED | |
| Backlight Life Time | >30000 hrs. | |
| Colors | 16.7M | |
| Touch Panel | Type | 4-wire Resistive Type |
| Accuracy | Active Area Length(X)±2%, Width(Y)±2% | |
| Memory | Flash (GB) | 4 |
| RAM (GB) | 1 | |
| Processor | Type | Quad-core RISC |
| I/O Port | SD slot | N/A |
| USB Host | USB 2.0 x 1 | |
| USB Client | N/A | |
| WiFi | M02 WiFi Expansion Module (Optional) | |
| Ethernet |
10/100 Base-T x 2 |
|
| COM port | Com.A: COM2 RS-485 2W/4W, COM3 RS-485 2W Com.B: COM1 RS-232 4W, COM3 RS-232 2W* |
|
| CAN Bus | N/A | |
| RTC | Real Time Clock | Built-in |
| Power | Input power | 24±20% VDC |
| Power consumption | 420mA@24VDC | |
| Power Isolation | Built-in | |
| Voltage resistance | 500 VAC (1 min.) | |
| Isolation Resistance | Exceed 50 MOhm at 500VDC | |
| Vibration Endurance | 10 to 25 Hz (X,Y,Z direction 2G 30 minutes) |
|
| Specification | Enclosure | Plastic |
| Dimensions WxHxD | 271 x 213 x 38mm | |
| Panel Cutout | 260 x 202mm | |
| Weight | Approx. 1,2 kg | |
| Environment | Protection Structure | NEMA4 / IP66 Compliant Front Panel |
| Storage temperature | -20 ~ 60 ° C (-4°~ 140 ° F) | |
| Operating temperature | 0 ~ 55 ° C (32°~ 131 ° F) | |
| Relative Humidity | 10 % - 90 % (non-condensing) | |
| Certification | CE | CE marked |
| Software | Free | Easy Builder Pro V6.10.01 or later version |
| Tariff | Custom Tariff number | 85371091 |
*Only Tx & Rx (no RTS/CTS) may be used for COM1 RS-232 when COM3 RS-232 is also used.
