PRO ECO 960W 24V 40A II (3025600000)
€463.00
€324.10
Save 30%
cena netto
Lowest price within 30 days before promotion:
€318.50

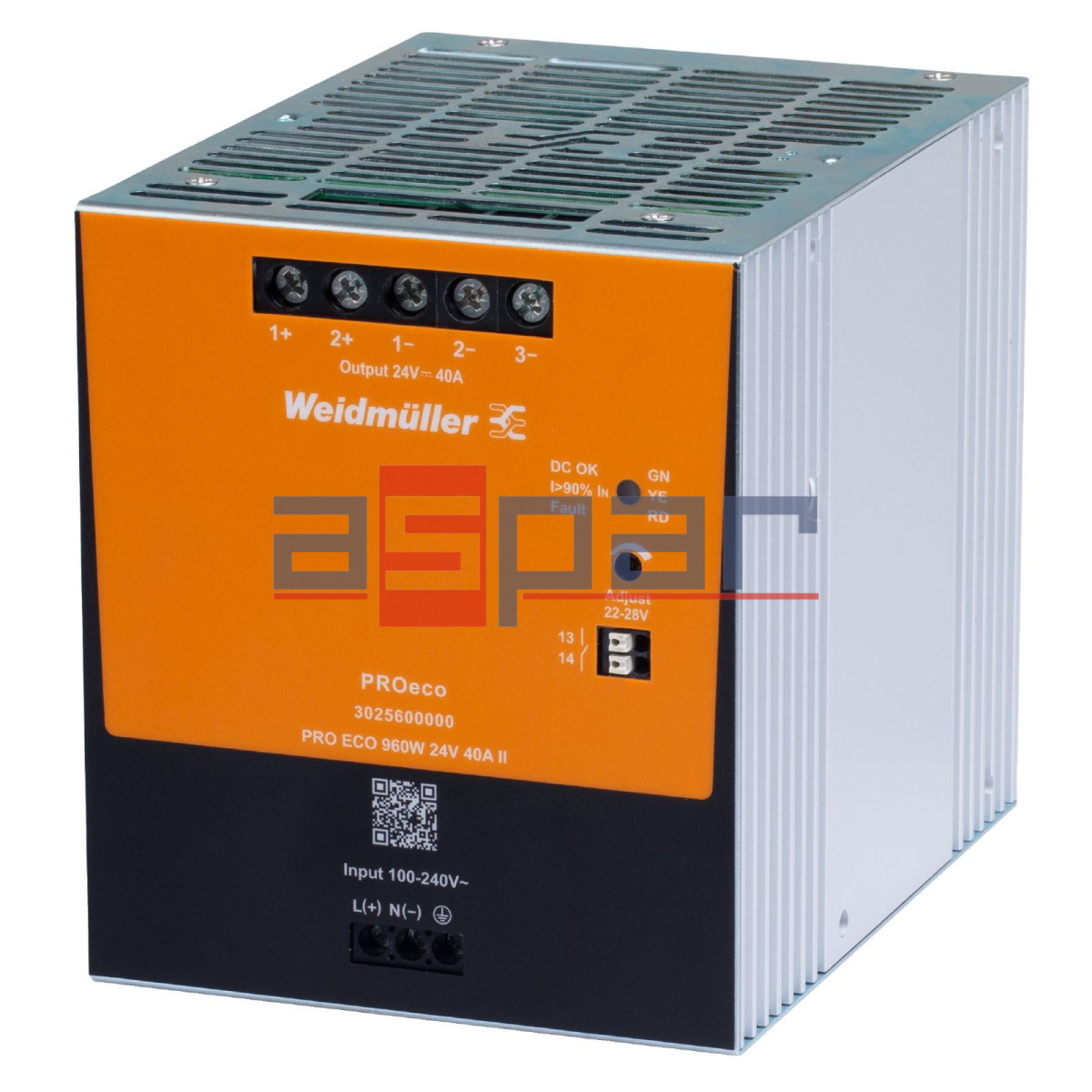

PRO ECO 960W 24V 40A II
- - manufacturer: Weidmüller
- - switch-mode power supply unit 24VDC, 40A
- - output power: 960W
- - width: 112 mm
- - operating temperature: -25 °C...70 °C
- - output voltage: 22~28VDC (adjustable via potentiometer)
Description
The new PROeco 2nd generation power supplies maximise the availability of automation applications. The twelve-part series offers standard functions: with high performance, efficiency and suitability for many systems. The three-colour LED makes service activities and the integration of PROeco devices particularly easy. The series is compatible with DC UPS, electronic load monitoring and diode modules and is suitable for setting up power management systems. The compact design suits space-contrained applications, such as flat control cabinets in the field.
PROeco 960W 24V 40A II - data sheet
EC - conformity declaration
| Type | PRO ECO 960W 24V 40A II |
| Manufacturer | Weidmüller |
| Order No | 3025600000 |
| Output voltage | 22~28VDC (adjustable via potentiometer) |
| Nominal output current | 40A |
| Net weight | 3 097 g |
| Operating temperature | -25 °C …+ 70 °C |
| Storage temperature | -40 °C …+ 85 °C |
| AC current consumption | 4,28 A @ 240 V AC |
| AC input voltage range | 85…264 V AC |
| Dimensions (Width x Height x Depth) | 112 x 130 x 150 mm |
| Custom tariff number (CN) | 8504 40 95 |
| Approvals |
