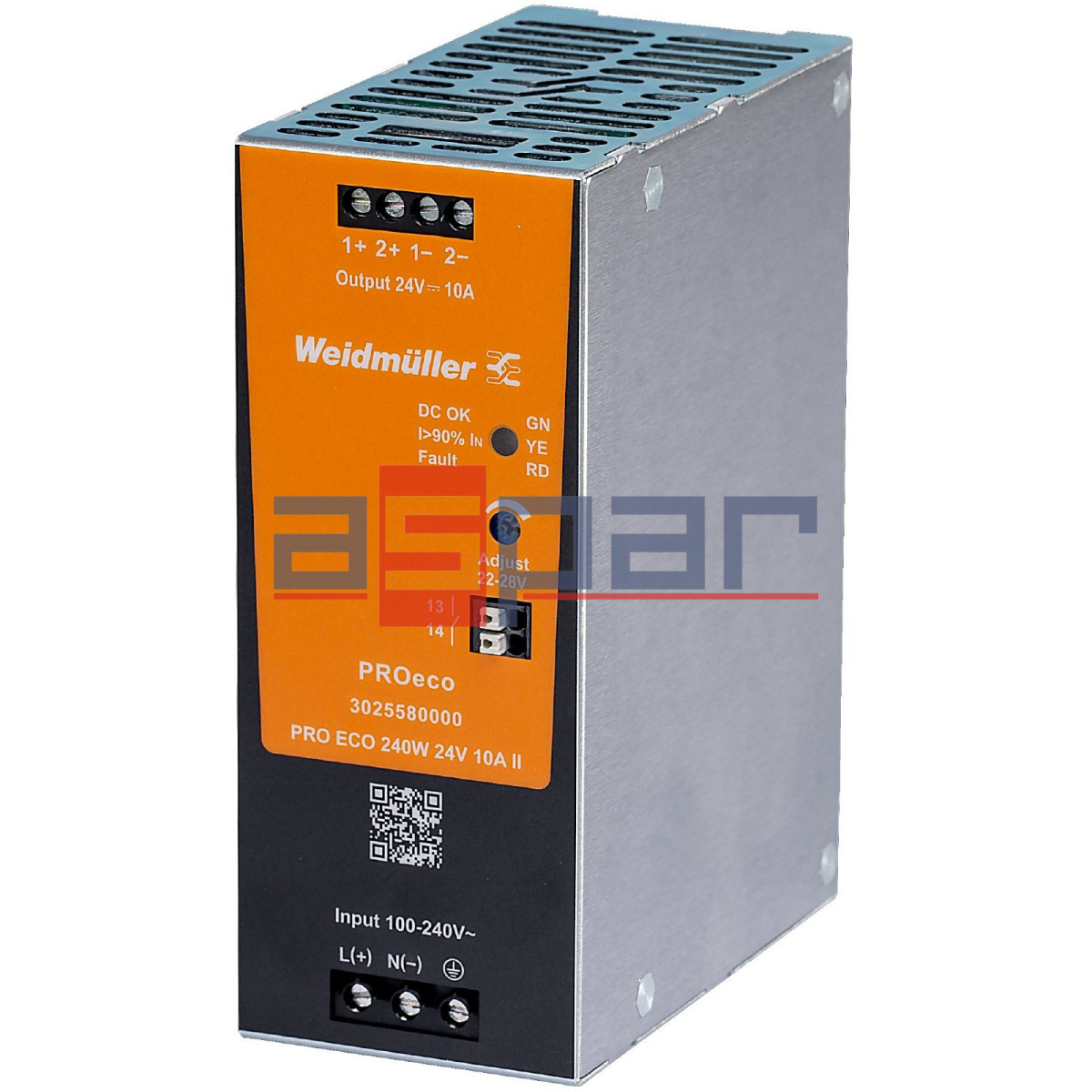

PRO ECO 240W 24V 10A II (3025580000)
€127.00
€95.25
Save 25%
cena netto
Lowest price within 30 days before promotion:
€95.25
PRO ECO 240W 24V 10A II
- - manufacturer: Weidmüller
- - switch-mode power supply unit 24VDC, 10A
- - output power: 240W
- - width: 52 mm
- - operating temperature: -25 °C...70 °C
- - output voltage: 22~28VDC (adjustable via potentiometer)
Description

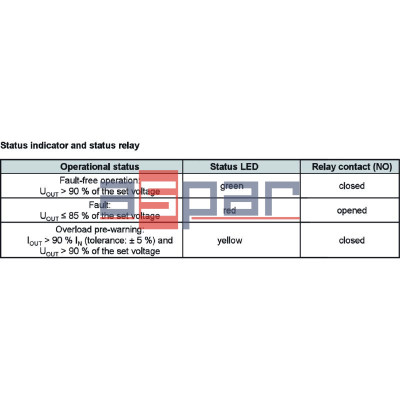

The new PROeco 2nd generation power supplies maximise the availability of automation applications. The twelve-part series offers standard functions: with high performance, efficiency and suitability for many systems. The three-colour LED makes service activities and the integration of PROeco devices particularly easy. The series is compatible with DC UPS, electronic load monitoring and diode modules and is suitable for setting up power management systems. The compact design suits space-contrained applications, such as flat control cabinets in the field.
PROeco 240W 24V 10A II - data sheet
EC - conformity declaration
| Type | PRO ECO 240W 24V 10A II |
| Manufacturer | Weidmüller |
| Order No | 3025580000 |
| Output voltage | 22~28VDC (adjustable via potentiometer) |
| Nominal output current | 10A |
| Net weight | 698g |

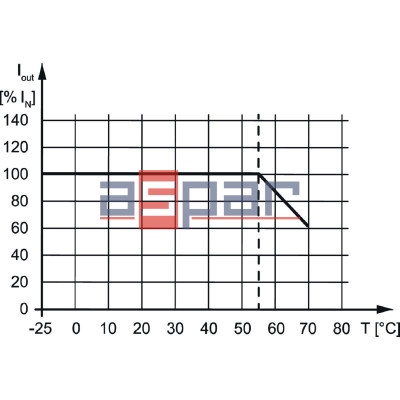

| Operating temperature | -25 °C …+ 70 °C |
| Storage temperature | -40 °C …+ 85 °C |
| AC current consumption | 1,07 A @ 240 V AC |
| AC input voltage range | 85…264 V AC |
| Dimensions (Width x Height x Depth) | 52 x 130 x 100 mm |
| Custom tariff number (CN) | 8504 40 95 |
| Approvals |
