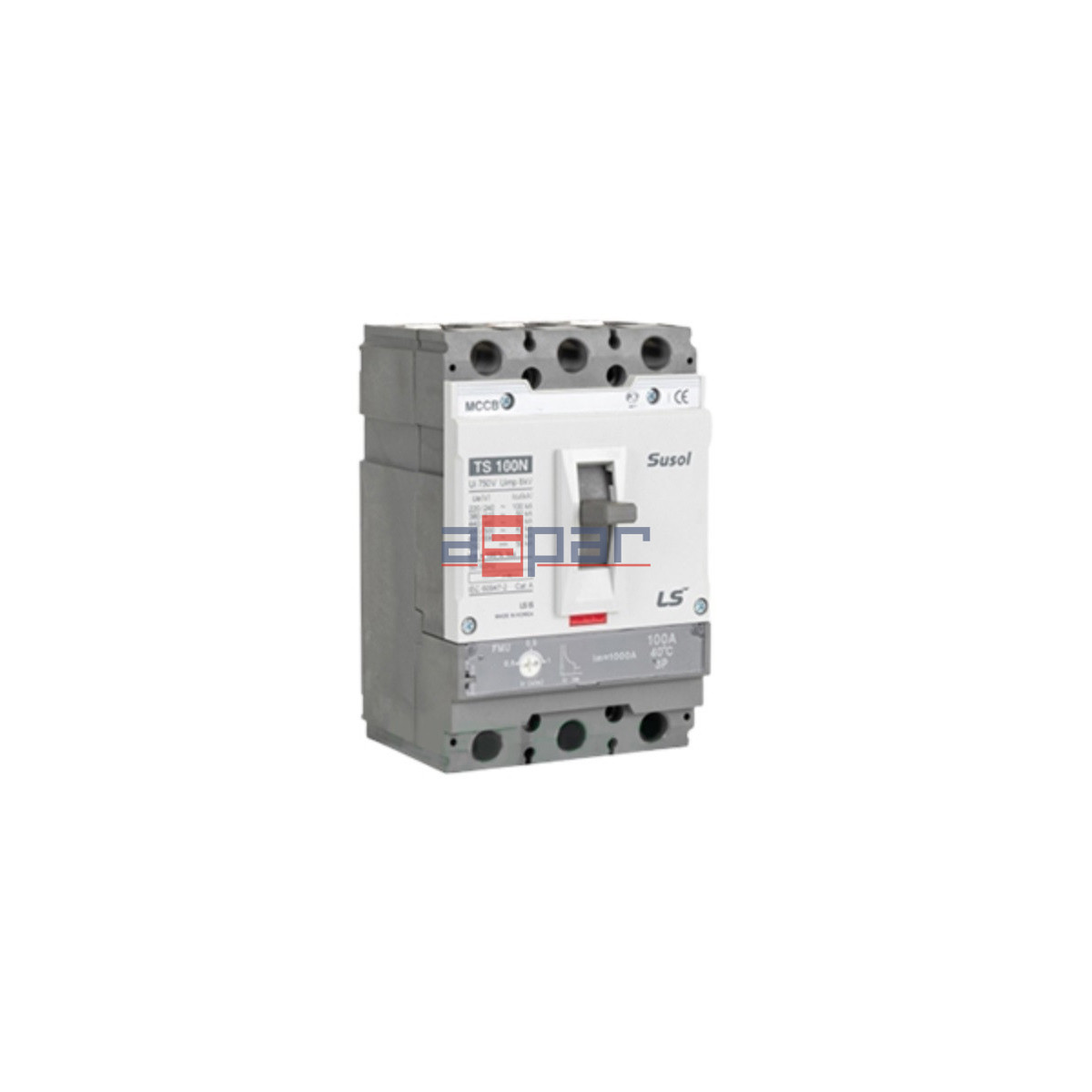

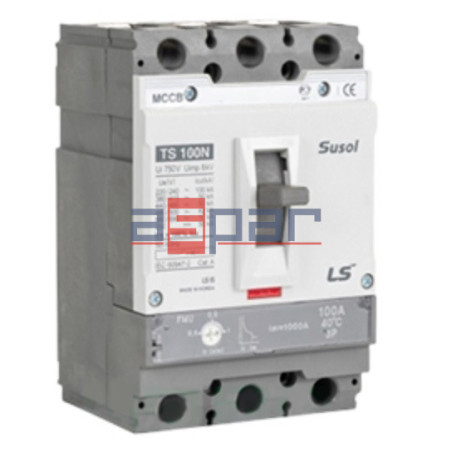

TS100N FMU 63A 3P LS Electric
  • TS100N FMU 63A 3P LS Electric

TS100N FMU 63A 3P

- Low voltage circuit breaker,

- Rated current, In: 63 A,

- No. of poles: 3 p,

- Fixed magnetic trip unit,

- Adlustable thermal trip unit.

Quantity

Description

SUSOL Series LS Electric

Low voltage circuit breakers LS Electric

Wyłączniki kompaktowe LS Electric





- Circuit breaker,

- Rated current, In: 63 A,

- No. of poles: 3 p,

- Fixed magnetic trip unit,

- Adjustable thermal trip unit,

- Rated operational voltage, Ue: AC: 690 V; DC 500 V,

- Rated impulse withstand voltage, Uimp: 8 kV,

- Rated ultimate short-circuit breaking capacity, Icu AC 50/60 Hz:

          220/240 V     - 100 kA

          380/415 V     - 50 kA

          440/460 V     - 50 kA

          480/500 V     - 42 kA

          660/690 V     - 10 kA

- Rated ultimate short-circuit breaking capacity, Icu DC:

                250 V     - 50 kA

                500 V     - 50 kA

- Rated service breaking capacity, Ics: 100 %Icu

- Category of utilization: A

- Isolation behavior: YES

- Norm: IEC60947-2

- Front and rear connection: fixed

- Front and rear connection: plug-in

- Mechanical life: 25000 operations

- Electrical live @  415 VAC: 10000 operations

- Basic dimensions W x H x D: 105 x 160 x 86 mm
